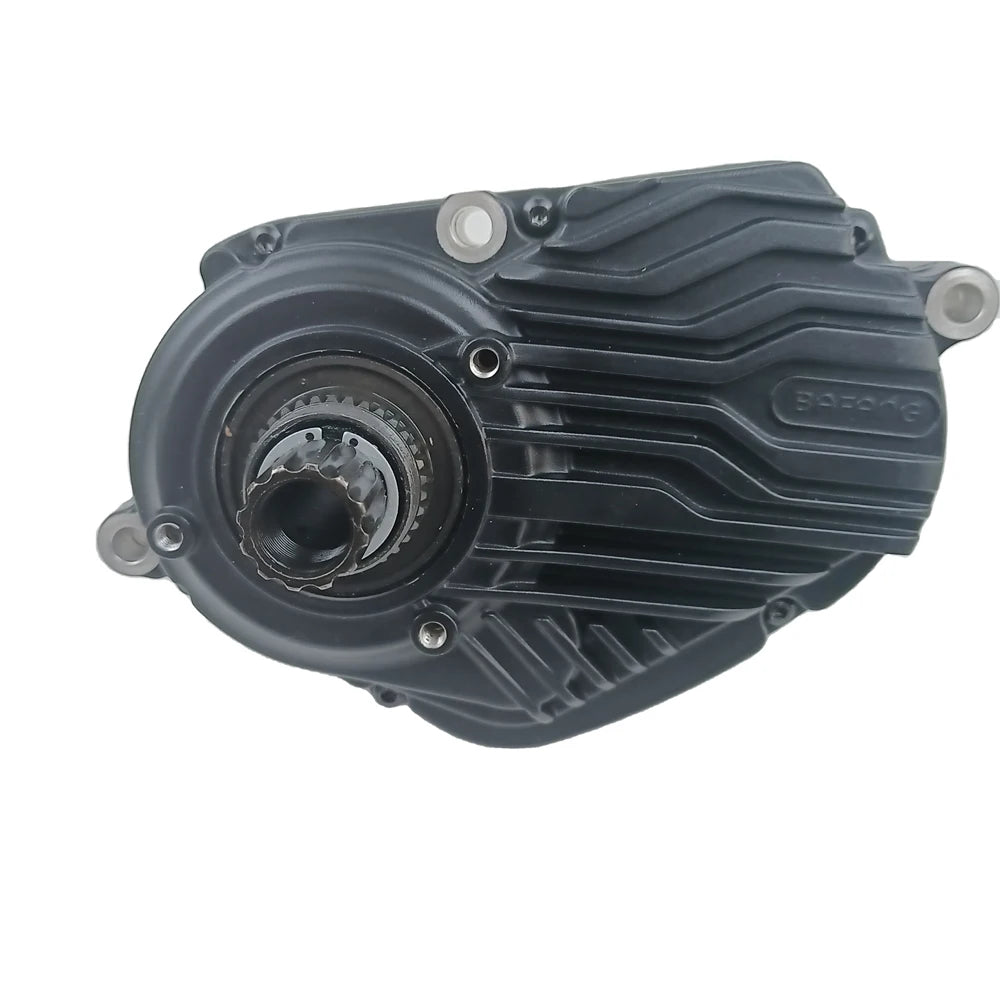

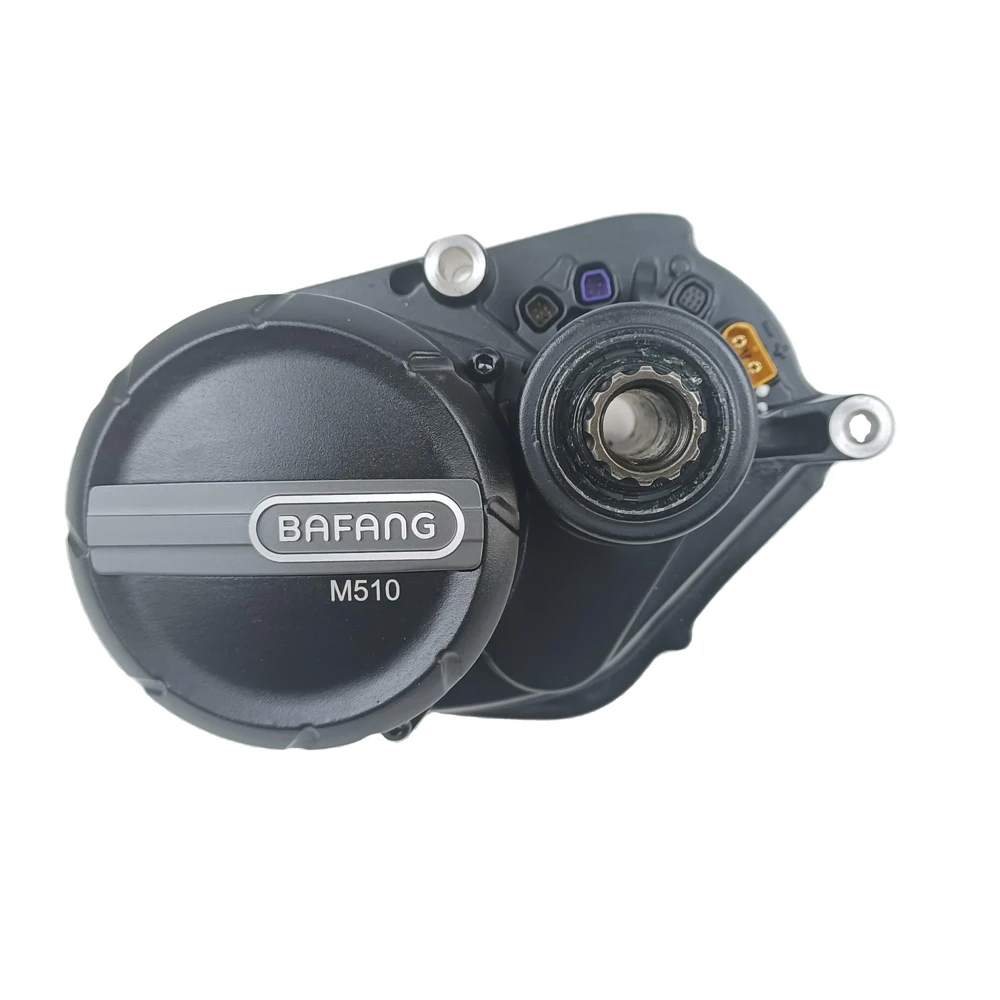

Bafang M510 Electric Bike Center Motor Kit Electric Mountain Bike Mid Drive Motor for EMTB Frame Torque 95NM
Bafang M510 Electric Bike Center Motor Kit Electric Mountain Bike Mid Drive Motor for EMTB Frame Torque 95NM
Det gick inte att ladda hämtningstillgänglighet

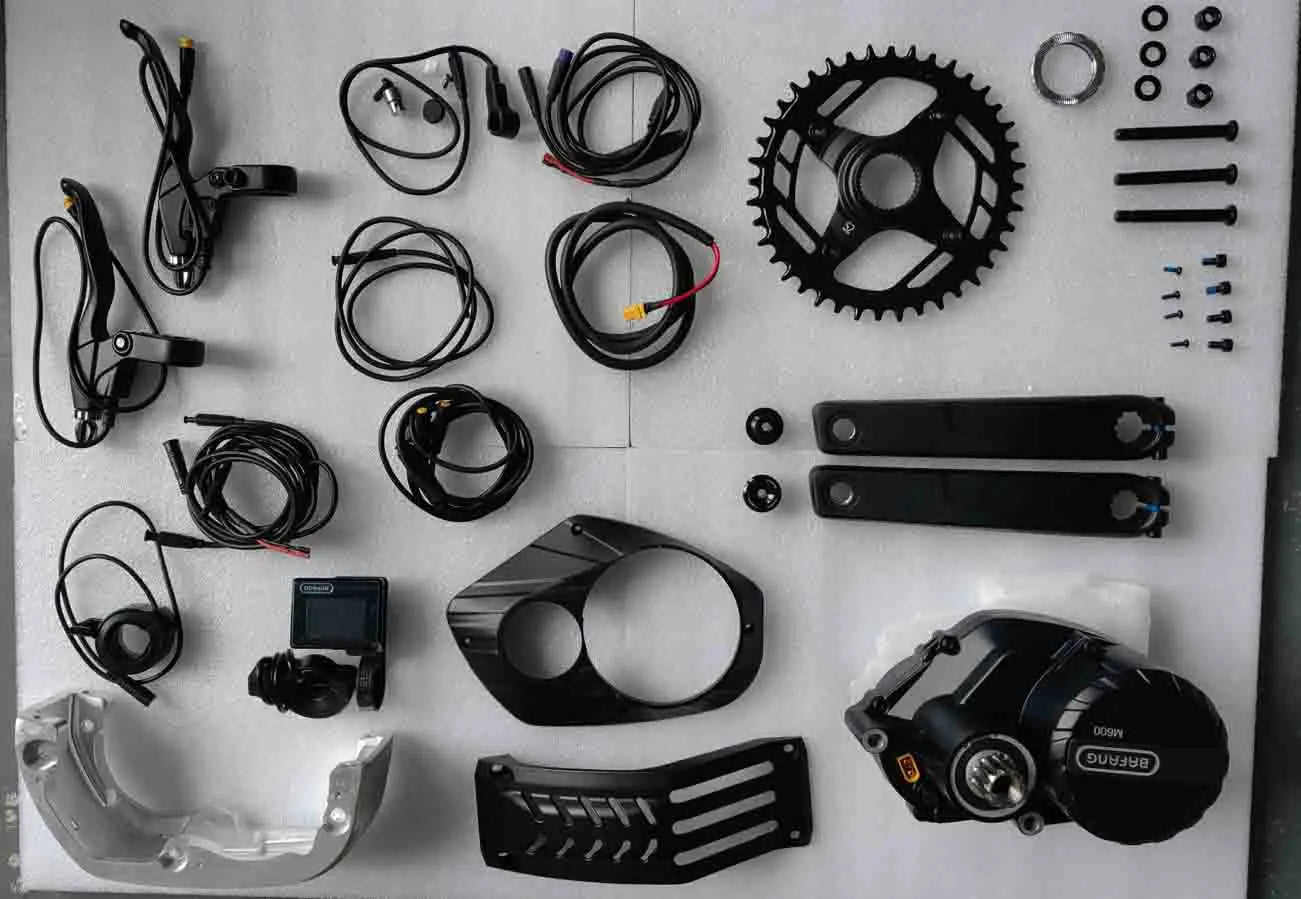

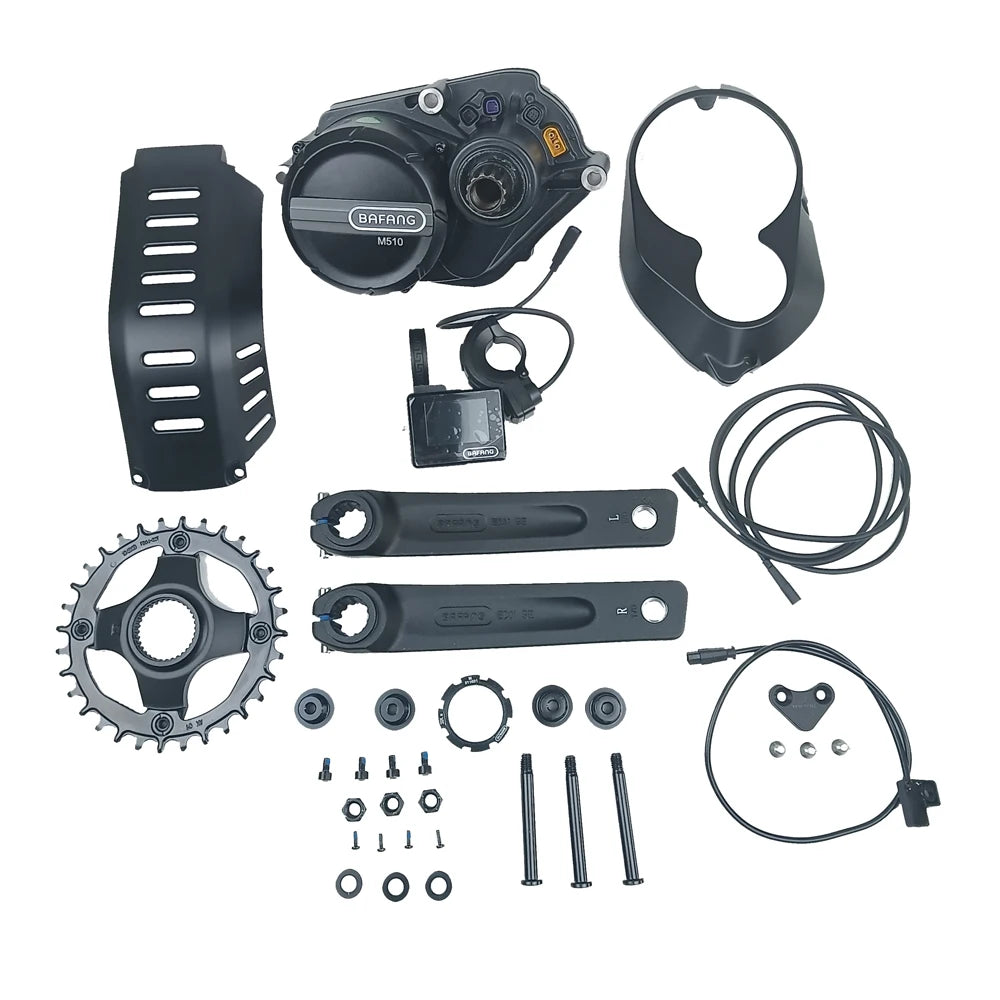

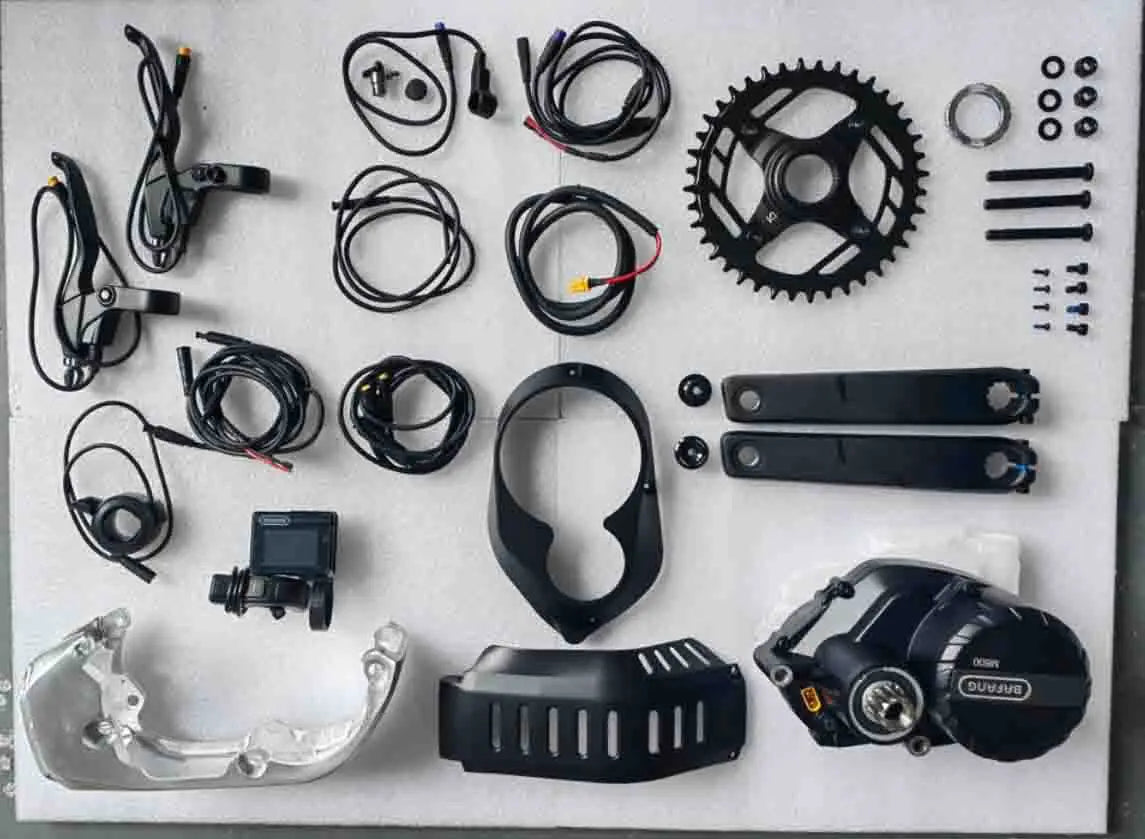

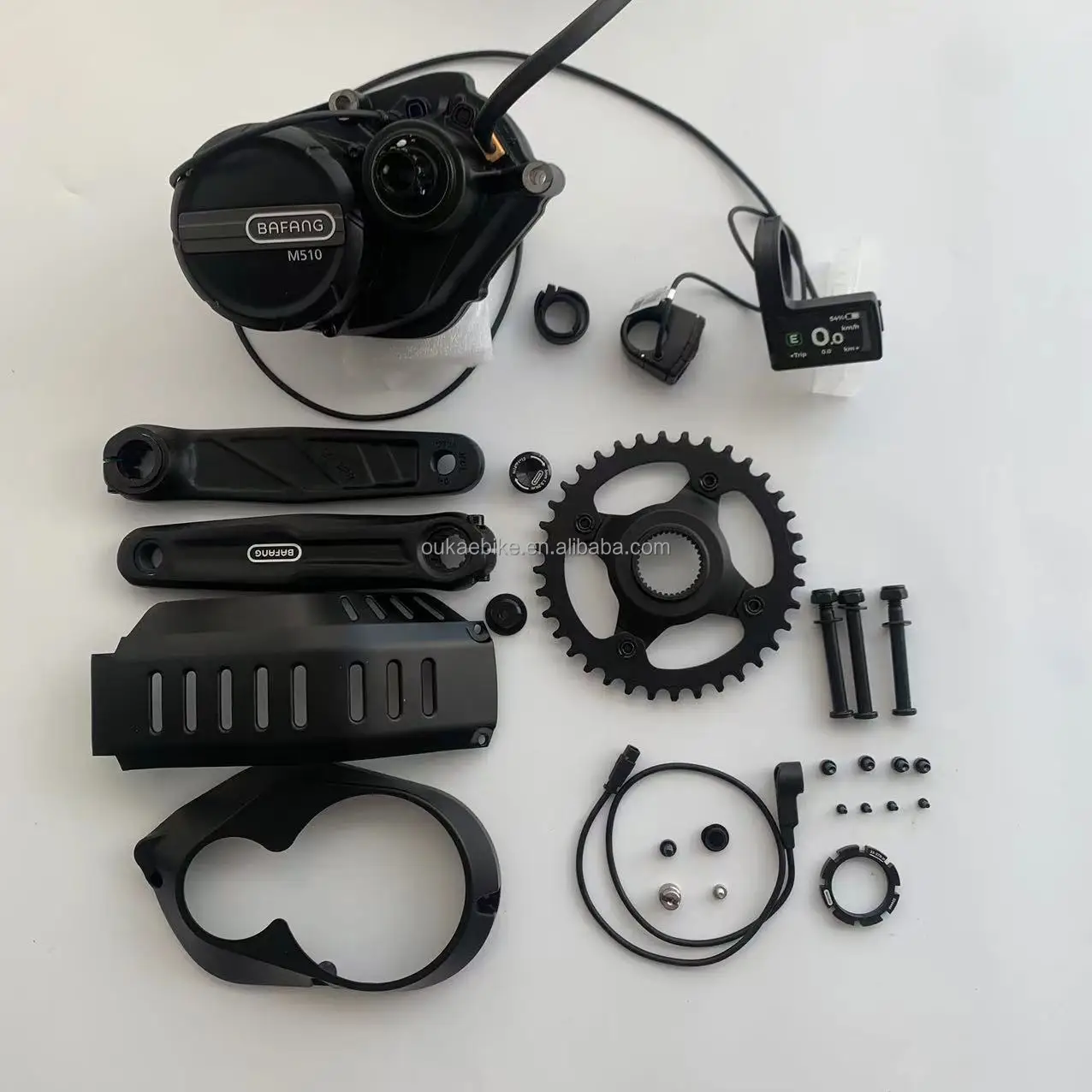

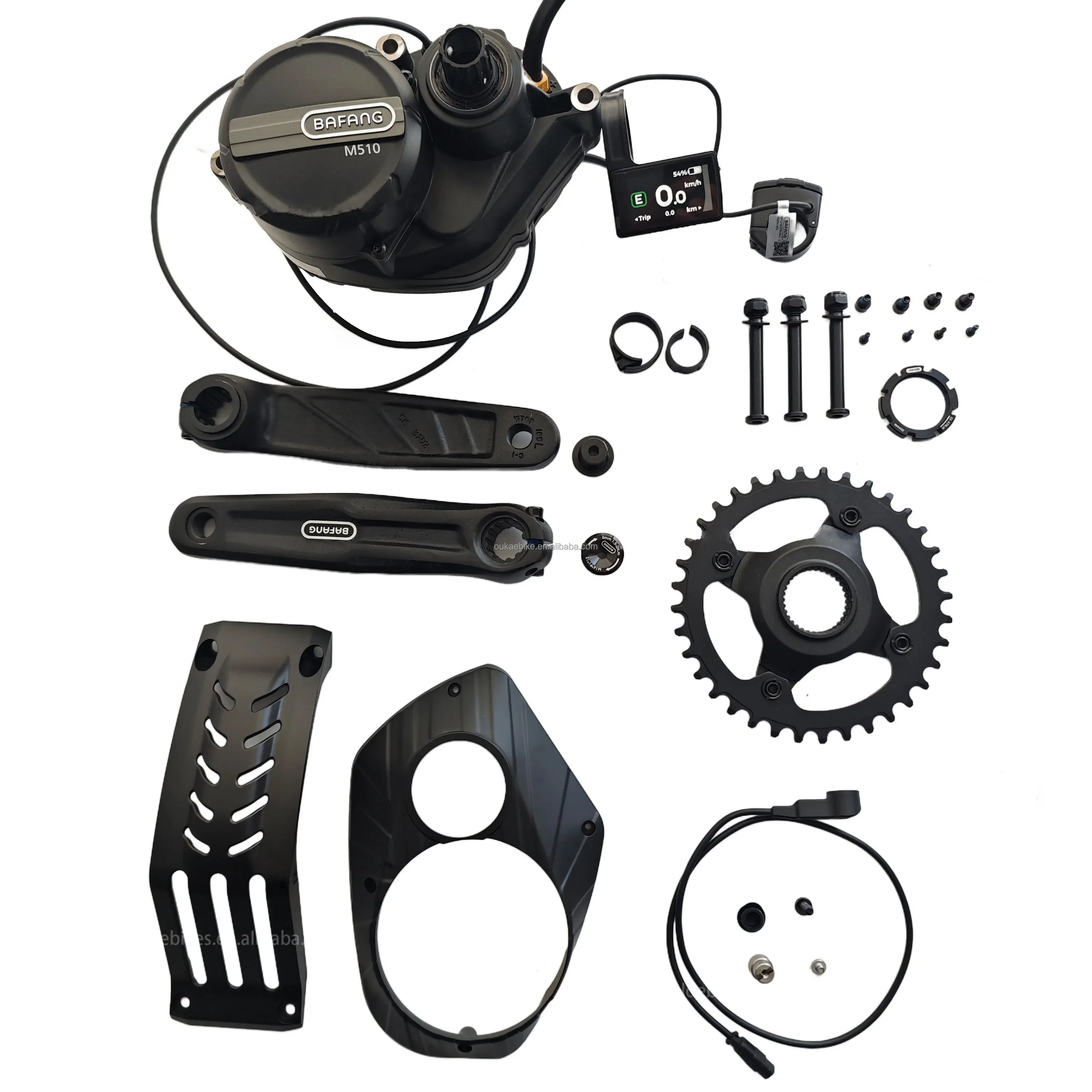

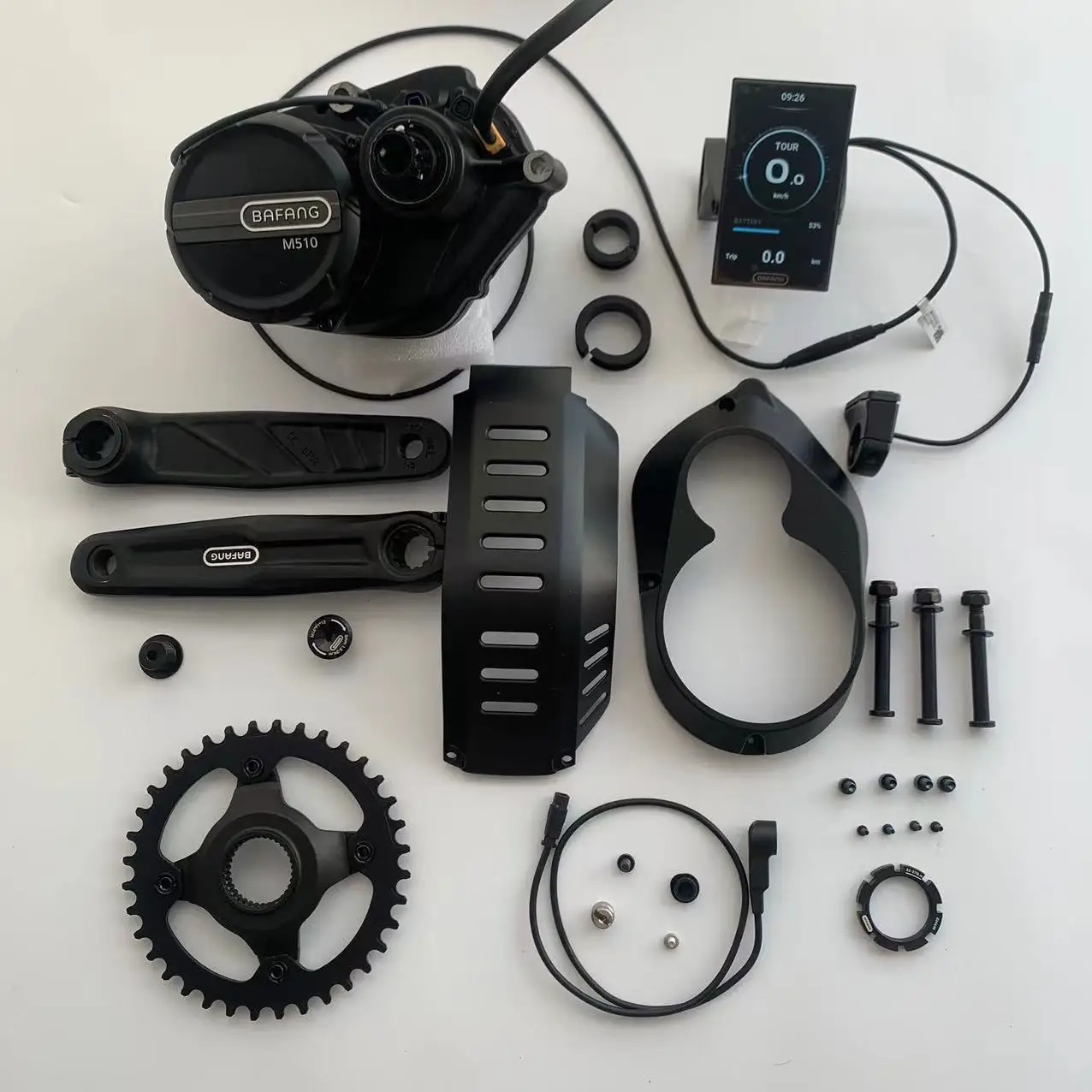

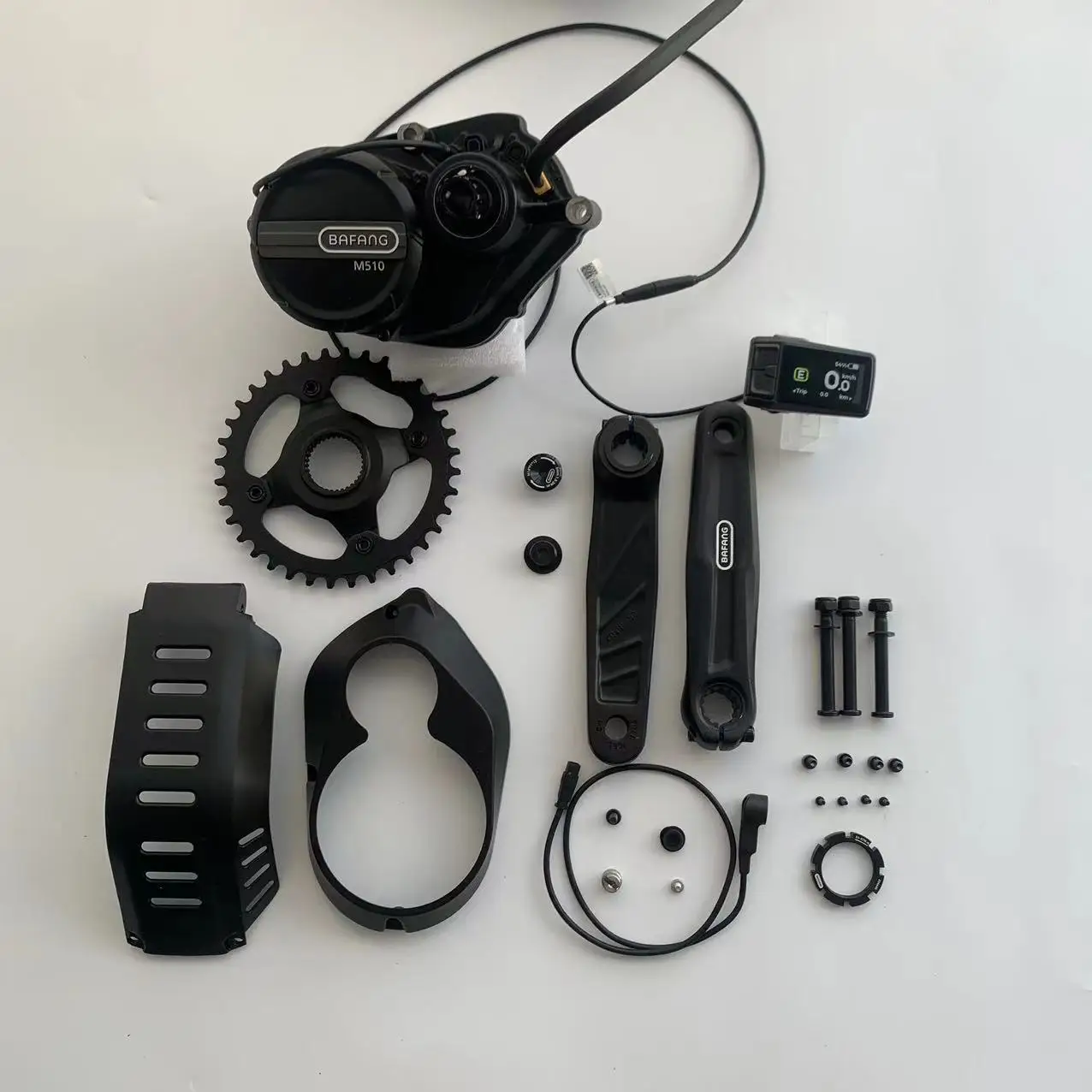

Motor For Electric Bike Bicycle Bafang M510 Mid Drive Motor 250w 95Nm Of The Torque

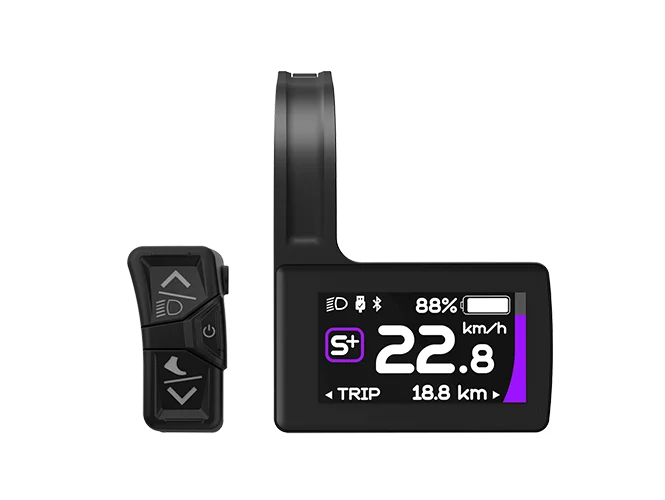

2. DPC240 Display + Operation Button: 1 pc

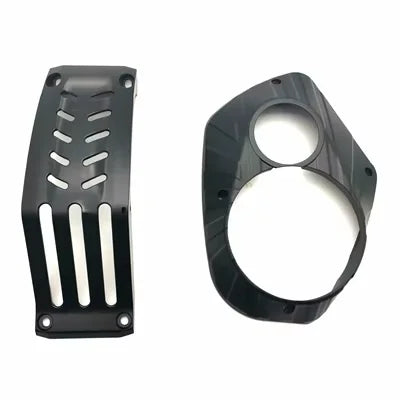

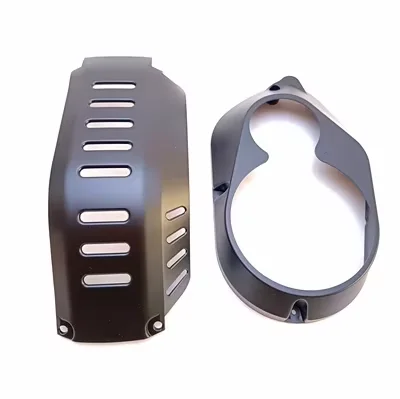

3. motor cover (AC M02 or AC M03): 1 pcs
4. FIXATION PARTS: 1 pcs
5. Waterproof Quick Release Wires(EB-Bus waterproof cable): 1 pc
6. Speed Detecting Sensor + Magnet: 1 pc
7. 32T/38T Chain wheel: 1 pc
8. Left Crank + Right Crank: each 1 pc
9. FIXATION BRACKET: 1pcs
10.BASH GUARD(BG G520A or BG G520B): 1 pcs
11. FIXATION PARTS: 1 pcs
DDP service countries: United Kingdom, Germany, Belgium, Luxembourg, Netherlands, Slovenia, France, Poland, Austria, Czech Republic, Republic, Denmark, Hungary, Slovakia, Lithuania, Spain, Sweden, Estonia, Croatia, Finland, Latvia, Italy, Portugal
 |
 |
 |
|

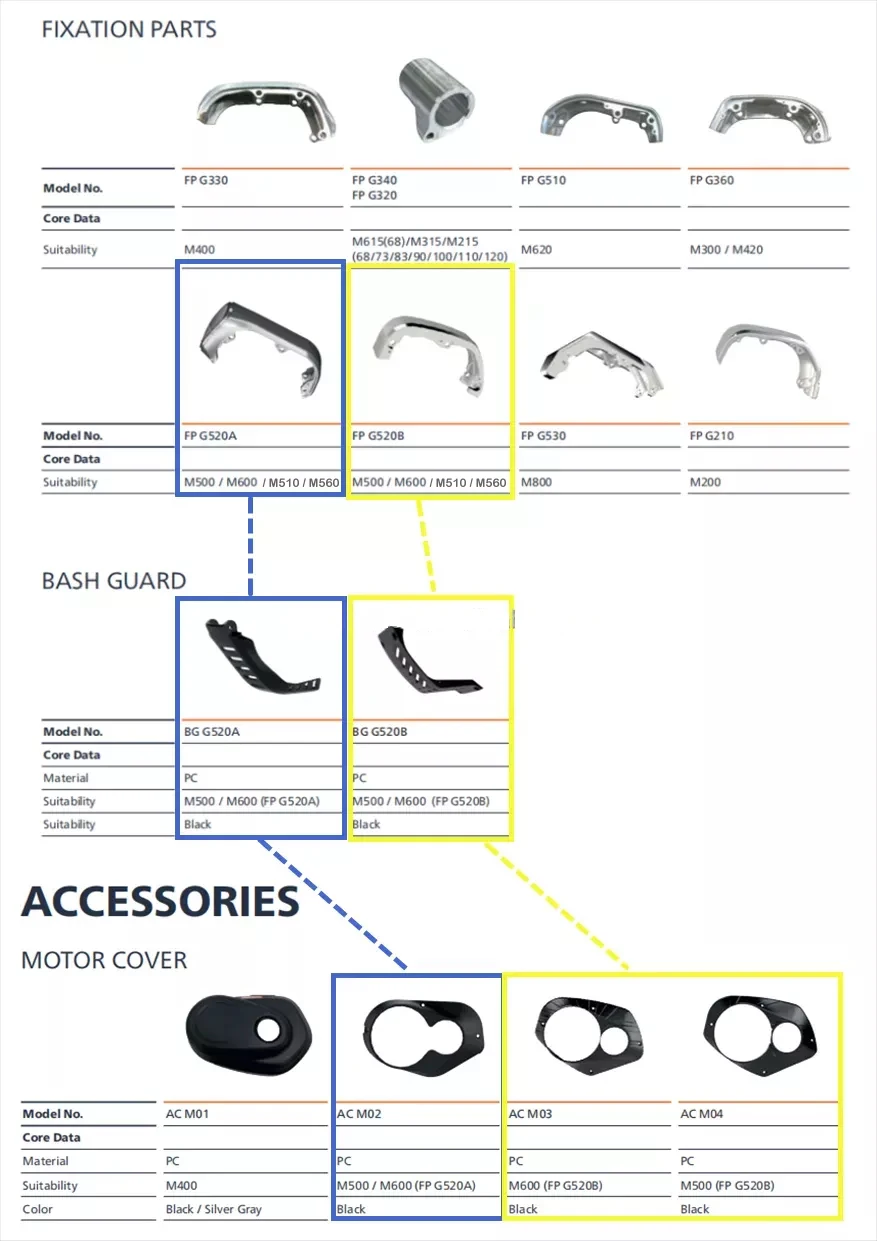

| Normal fixation bracket --FP G520A | Normal fixation bracket --FP G520B |
The mid-drive motor constantly samples relevant information at a frequency of up to 80k Hz via a torque sensor and two speed sensors which are all highly sensitive. The resulting data on crank torque, vehicle speed and the speed of rotation of the pedals is made available to the controller, ensuring precise control of the vehicle while achieving the highest possible efficiency. The Max Drive System puts the rider in complete control. In spite of a generous power output and a maximum torque of more than 95 N.m, the motor operates in virtual silence. The modular motor design and integrated controller make disassembly easier and improve service responsiveness. This motor can be black or sliver.
SPECIFICATIONS

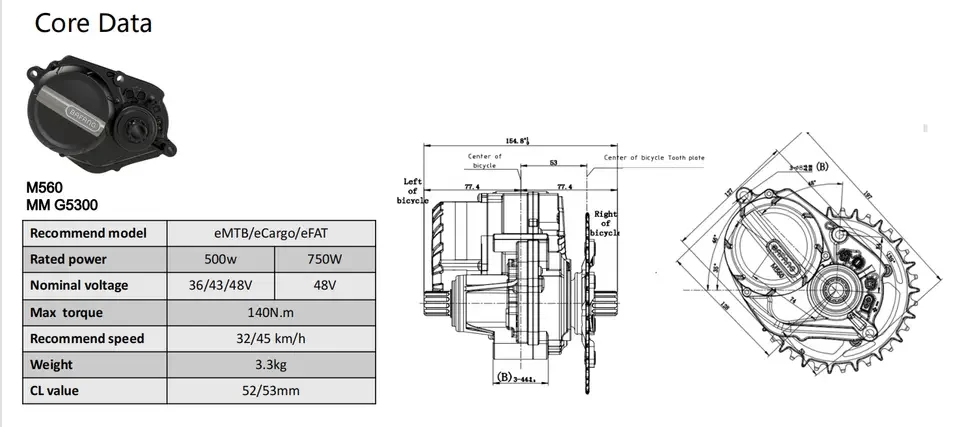

Core Data
| Position | Mid Motor |
| Wheel Diameter (Inch) | Optional |
| Construction | Gear drive |
| Rated Voltage (DCV) | 36/43/48 |
| n0 (Rpm) | 125/125 |
| Rated Power (W) | 350/500 |
| nT(Rpm) | 118/105 |
| Max Torque | 120 N.m |
| Efficiency (%) | ≥ 80 |
| Pedal Sensor | Speed and Torque Integrated |
| Shaft Standard | BAFANG |
| Color | Black |
| Weight (kg) | 3.4 |
| Noise Grade (dB) | < 55 |
| Operating Temperature | -20-45℃ |
Function
| E-Brake | Yes |
| Gearsensor Function | Yes |
| Light Drive Capacity (DCV / W) | 6 /3(max) |
Tests & Certifications
| IP | IP 65 |
| Certifications | CE / EN 14764 / ROHS |
| Salt Spary Test Standard(h) | 96 |
About the other types case: forg battery, downtube battery, rear rack battery, bag battery click the following picture to the catalogue select more.
Package
BBS 01 02 Package size: 32 x 27 x 25cm
GW: 6.5kg
BBS HD Package size: 54 x 32 x 25
GW: 9.5kg

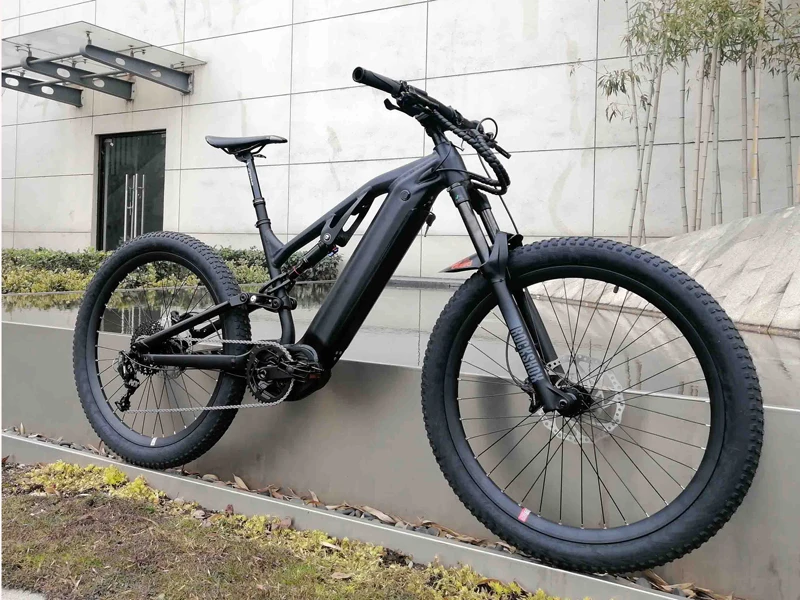

Coversion example and feedback from customers.
Front & rear drive hub motor electric bike conversion kit
Click the following picture to see the detail.
Warranty policy
a.) For main electronic parts, charger, controller and battery, we provide 6 months warranty.
b.) For motor, we provide 12 months warranty.
c.) For frame, handlebar, stem and wheel rim we provide 2 years warranty.
1.1 The following conditions, not including in warranty policy
a.) Any damages caused by human factor.
b.) Dismounting any parts without professional technical people.
c.) Use other parts in our electric bike or scooter.
d.) Damages caused by traffic accident and other accident.
e.) The problem caused by overloading.
Technical support
a.) We provide “electric circuit diagram” for each model.
b.) We can train customer’s 1 or 2 technical workers for free.
c.) When oversea customers meet serious problem, they can not work out by technican, we will dispatch engineer to customer’s company to give help.
FAQ
Q: Why choose an electric bike?
A: You can not only ride it as ordinary bike but also choose battery powered mode when you get tired, and you don't need to get a license and pay parking fee.
Q:Can you change configuration for me?
A:No problem, we can do customize, so we can change configuration based on your request.
Q: Do you have the e-bikes in stock?
A: No, to keep the quality, all e-bikes will be newly produced against you order, including the samples.
Q: What colors are available, can we attach our logo or brand on the bicycles?
A: We have color options, also we can change the colors and attach your logo and brand based on your request, please contact us to ask for more.
Q: Can I order some samples at first to see the quality?
A: No problem, if your order is less than 10 pcs, we need to charge some extra sample fee, the amount is based on your specific quantity, when your orders reach 1*40' container, we can refund you the sample fee.
Q: Can I mix different models in one container?
A: Yes, different models can be mixed up in one full container.
Q: What's your payment terms?
A: Payment term is 30% TT in advance , 70%balance against copy of BL. The samples payment will be 100% prepaid.
1. OEM Manufacturing welcome: Product, Package...
2. Sample order
3. We will reply you for your inquiry in 24 hours.
4. after sending, we will track the products for you once every two days, until you get the products. When you got the goods, test them, and give me a feedback.If you have any questions about the problem, contact with us, we will offer the solve way for you.
